CGF 8-8-3 Normal Pressure 3-in-1 Washing Filling Capping Machine

Brand Name : NC

Model Number : CGF 8-8-3

Place of Origin : Shanghai, China

MOQ : 1 set

Price : USD 9600 -1 SET

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Machinery Capacity : 2000BPH

Application : Beverage

Packaging Type : Bottles

Packaging Material : Glass, Plastic

Automatic Grade : Automatic

Driven Type : Electric

Dimension(L*W*H) : 2000*1550*2500mm

Weight : 1850 KG

Key Selling Points : Easy to Operate

Filling Material : Beer, Milk, Water, Oil, Juice

Filling Accuracy : 100

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine

After-sales Service Provided : Engineers available to service machinery overseas

After Warranty Service : Video technical support

Type : Filling Machine

Condition : New

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location : Viet Nam, Peru, Thailand, Kenya, Chile

Warranty of core components : 1 Year

Port : Shanghai

Contact Now

Product Overview

CGF 8-8-3 Normal Pressure 3-in-1 Washing Filling Capping Machine

Food sanitary stainless steel
Supply the turn-key project from A-Z
World famous brand electrical
Provide installation service
Fully Production Line
Provide installation and commission service
Capacity from 500L to 20,000L per hour

PRODUCT SPECIFICATIONS

Production capacity	Production capacity
Washing heads	8 pcs
Filling heads	8 pcs
Capping heads	3 pcs
Filling way	Normal pressure filling
Filling temperature	Normal temperature
Consumption power	Main power 1.5KW
Cap Unscrambler motor	0.06KW
Capping motor	0.25KW
Washing pump	0.37KW
feeding pump	0.55KW
Water consumption	0.2T/h

PRODUCT CONFIGURATION

SKF BEARING WITH SMOOTH MOVING

COMPACT SHAPE

CONNECT WITH THE COMPLETE LINE

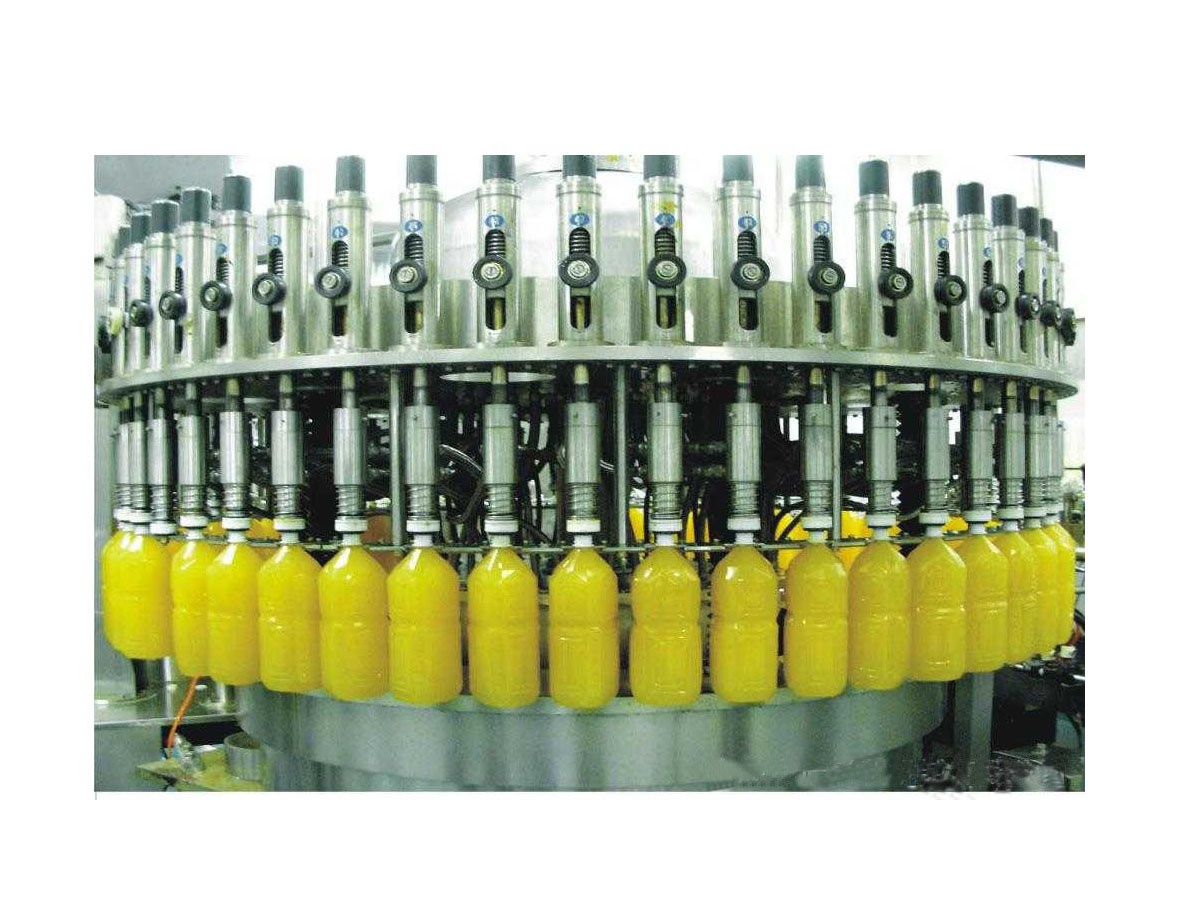

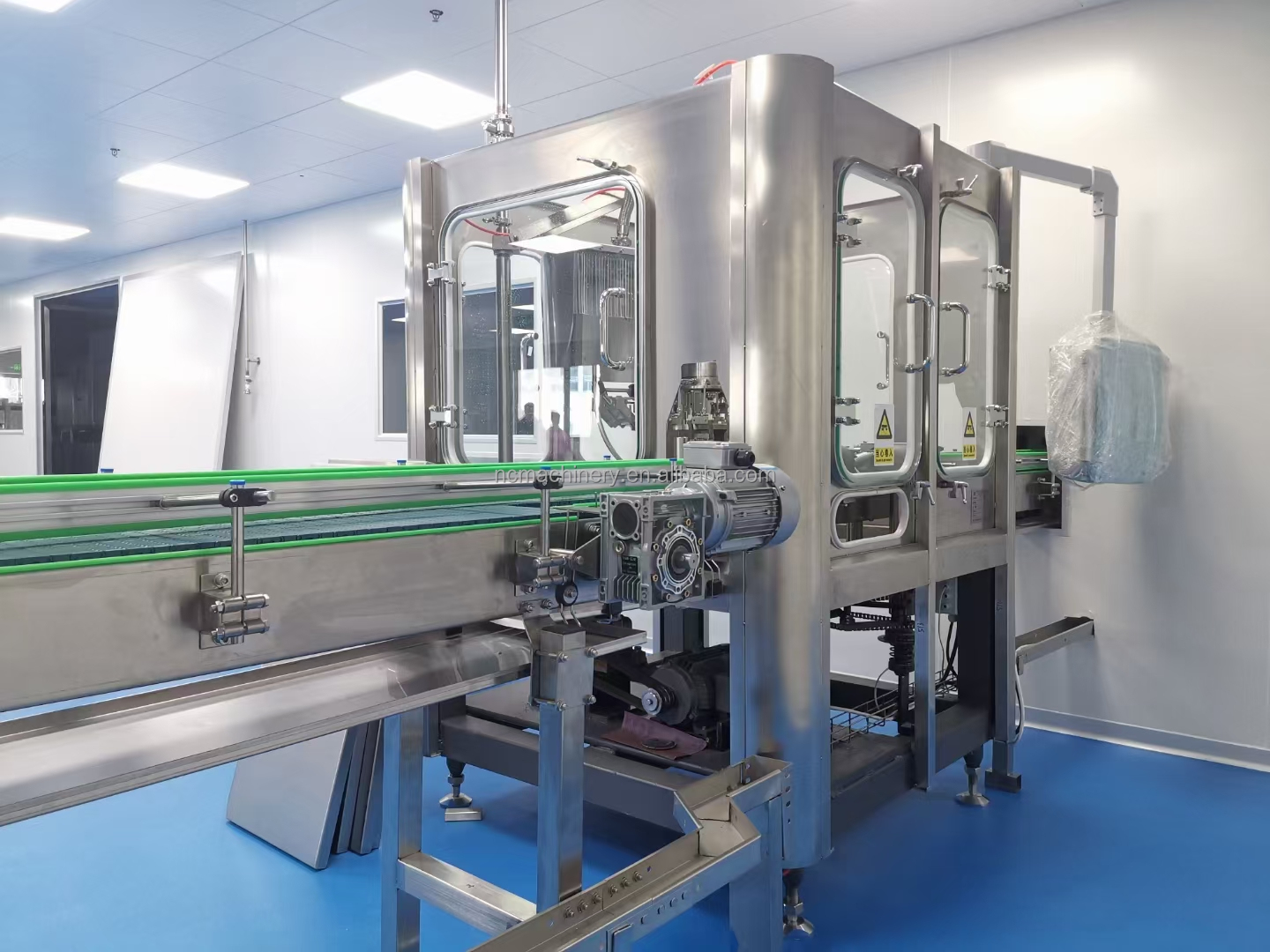

CGF 8-8-3 Normal Pressure 3-in-1 Washing Filling Capping Machine Images
